Freeform augmented reality (AR) lens mold

Goal:
Demonstrate the surface finish achievable when manufacturing a Freeform Augmented Reality Lens Mold by Slow Tool Servo (STS) on a Freeform® L.


Process:
Freeform XZC diamond turning

Part Details:
• Material: Nickel plated steel
• Part dimensions: 26.68 mm x 26.88 mm


Process Details:
• Tool: Single point diamond tool
• Tool Radius: 0.76 mm
• Spindle speed: 70 rpm
• Feed rate: 5 µm/rev
• Finish pass depth of cut: 2 µm
• Coolant: Odorless mineral spirits (OMS)

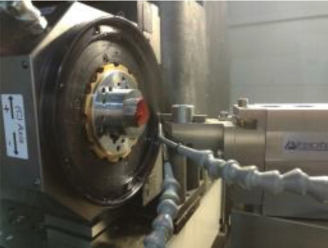

                               Setup Photo


                               Part Photo


Results:
• Surface finish near center: 1.35 nm Ra
• Surface finish near edge: 0.872 nm Ra

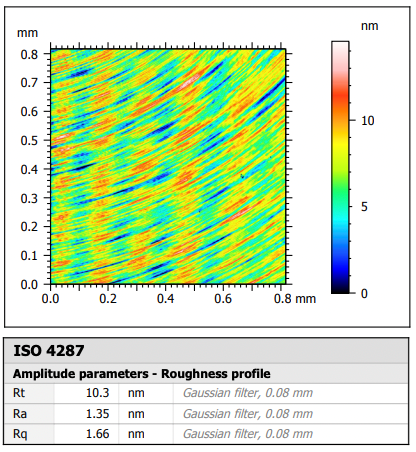

                       Sample 1 - near center

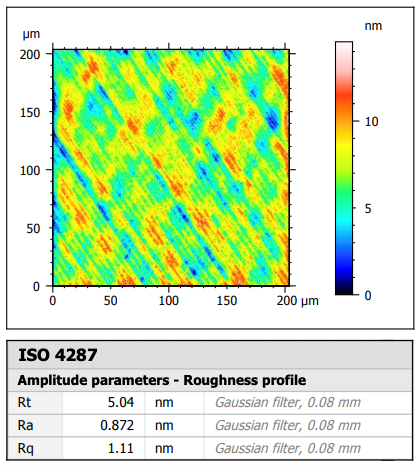

                    Sample 2 - outside edge
