Freeform® Head-up Display (HUD) Mold using Adaptive Control Technology (ACT)

Goal:

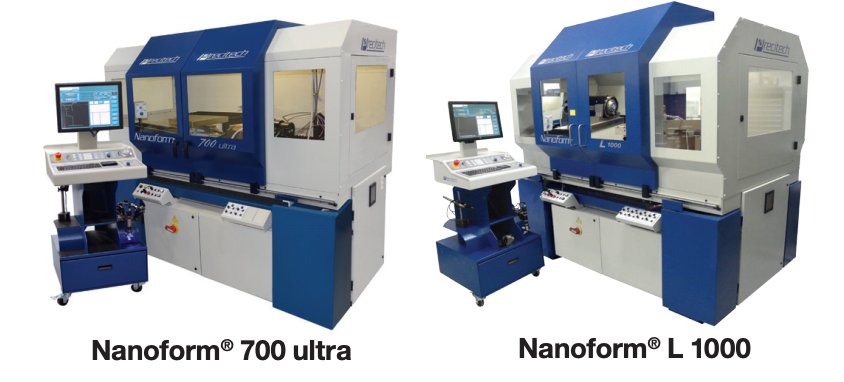

 Demonstrate the surface finish and form accuracy achievable when machining a Head-Up Display (HUD) mold on either the Nanoform® 700 ultra or the Nanoform® L 1000 machine platform using Adaptive Control Technology (ACT) and an HD160 high capacity work holding spindle.



Process:

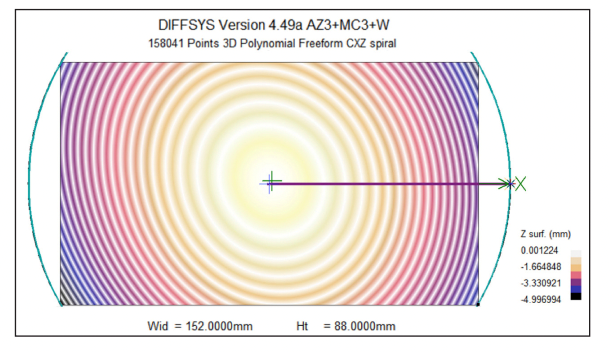

Freeform XZC diamond turning with Adaptive Control Technology to eliminate errors in X and Y that repeat with spindle position


                                                   Part Photo


                                                Setup Photo

 Part Details:
 • Material: Brass


Process Details:
• Tool: Single point diamond tool
• Tool radius: 1.5 mm
• Spindle speed: 200 rpm
• Feed rate: 2.5 µm/rev
• Coolant: Odorless mineral spirits (OMS)

Results:

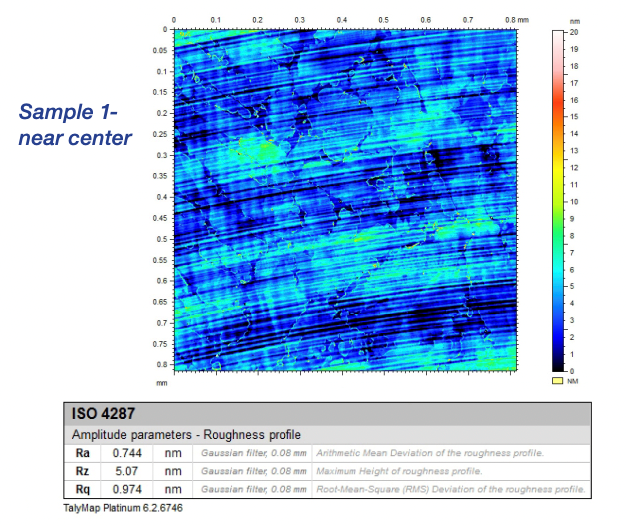

• Surface finish near center: 0.744 nm Ra

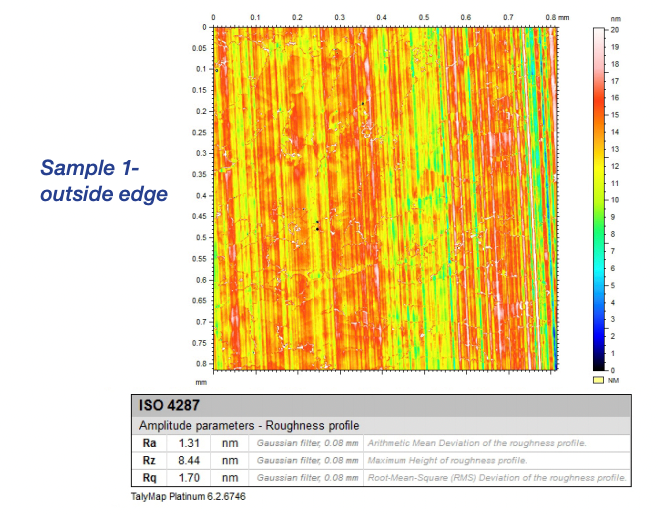

• Surface finish near edge: 1.31 nm Ra
• Form error: 0.79 µm PV




Download Apps Note
